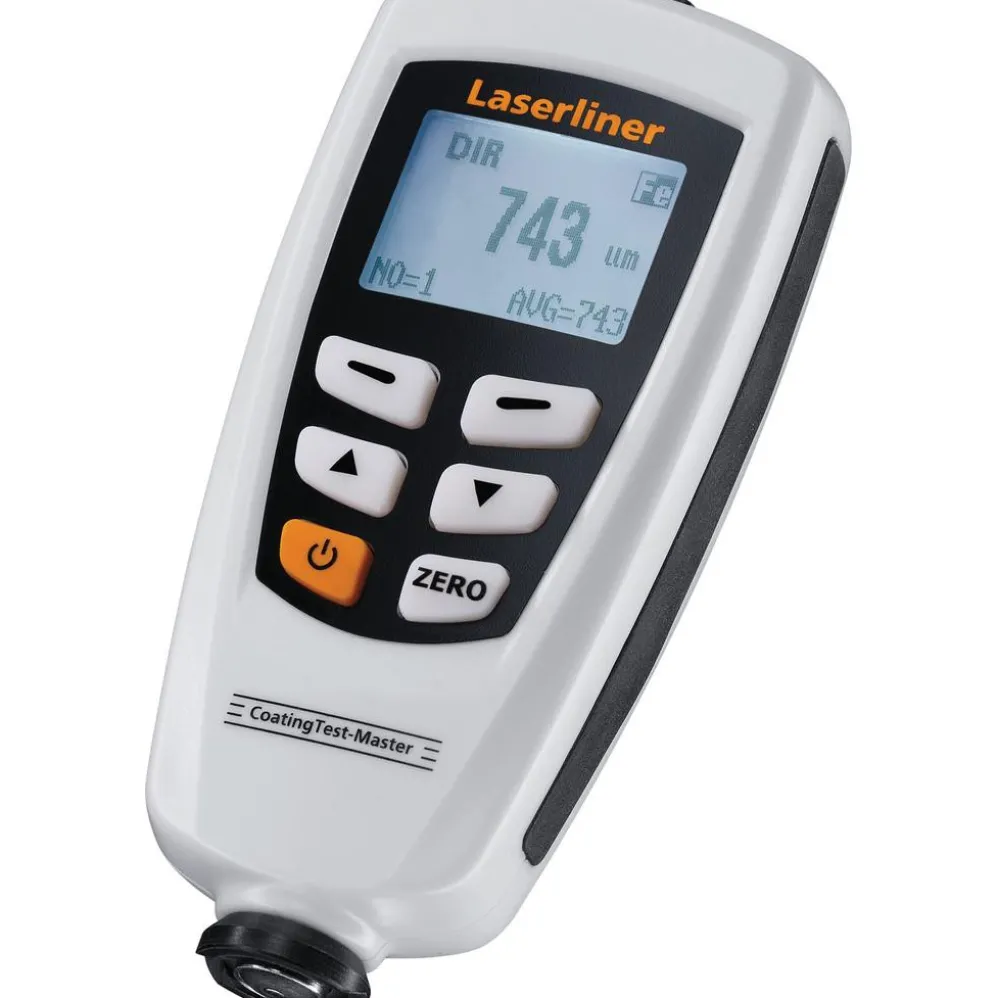

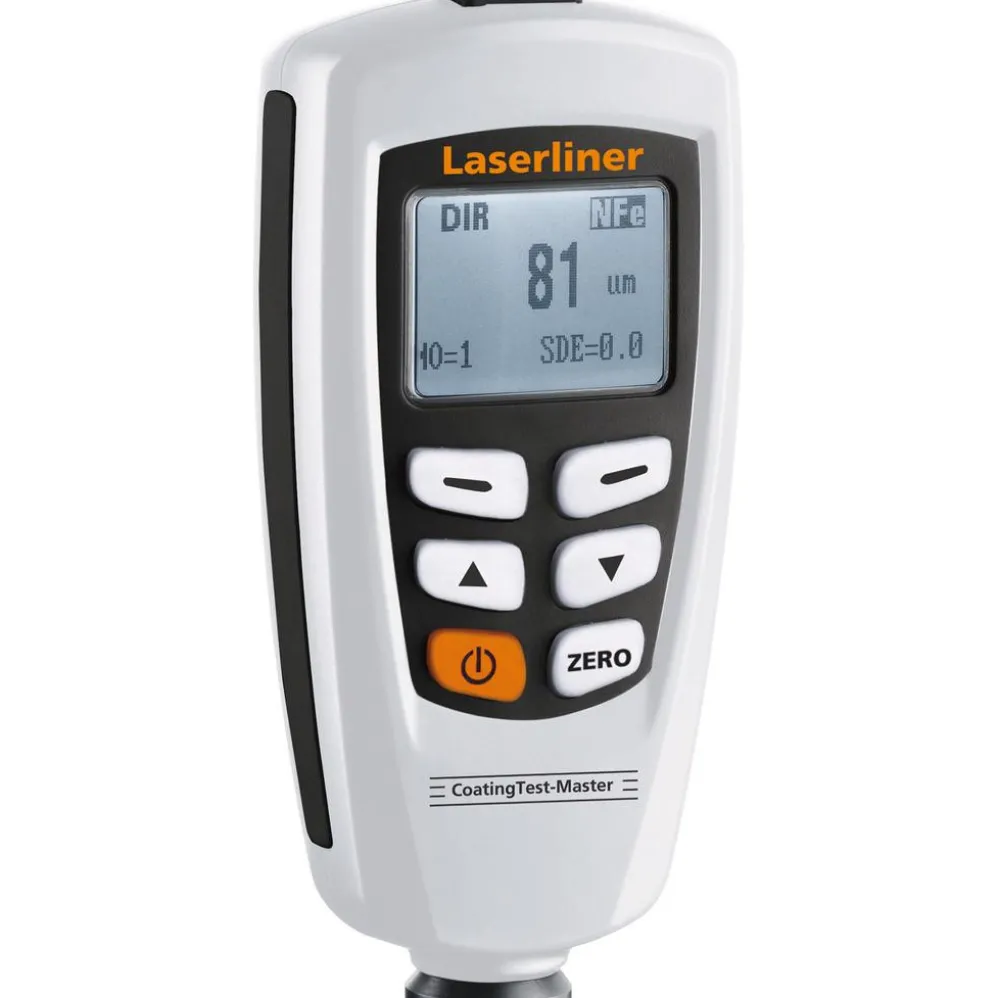

Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device

Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device

£93.90

SKU: SKU8POB50 Categories: Electrical, Equipment, Testing Equipment Tag: Laserliner Brand: Laserliner

Description
Reviews (0)

Product Description

This point precise coating thickness measuring instrument is suitable for insulating and non-magnetic coatings on non-ferrous metals. The base material is identified automatically (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic). The device features one-point or two-point calibration to increase the measuring accuracy. 400 measured values can be saved to the internal memory and transferred to a PC via the USB interface for further analysis. Supplied with USB cable, batteries and carrying case.

Point precise coating thickness measurement based on induction and eddy current principle

Measurable coatings: non-magnetic (paint, zinc on steel) and insulating (paint, anodised coatings)

Automatic identification of base material (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic)

Comprehensive data backup due to internal memory for 400 measured values

Increased measuring accuracy due to one-point and two-point calibration

USB interface for analysis on PC

Min/Max/AVG display

Easy-to-read display

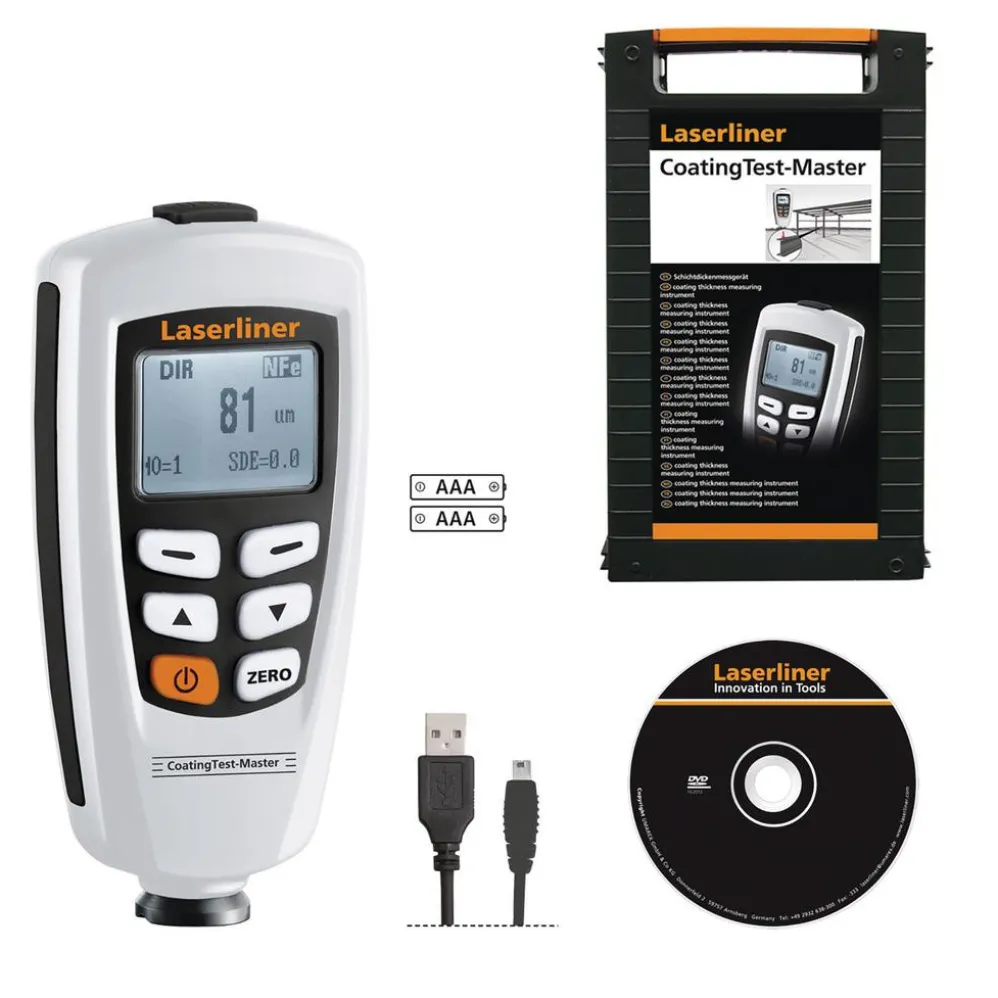

Supplied with USB cable, batteries and carrying case

1 x Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device
1 x Calibration references
1 x Software
1 x USB cable
1 x Batteries
1 x Carrying case

Specifications

Coating thickness	Yes
Data transfer	Yes
Ferrous and non-ferrous	Yes
Single and continuous measurement	Yes
Mean value	Yes
Standard deviation	Yes
Zero adjustment	Yes
User calibration	Yes
Measured Variable	Coating thickness
Coating Thickness Measuring Range	0 … 1250 µm
Sensor Type	Magnetic-inductive (Fe), eddy current (NFe)
Port	USB
Memory	80 measurements / mode
Power Supply	2 x 1.5V LR03 (AAA)
Dimensions (W x H x D)	23 mm x 110 mm x 50 mm
Weight	116 g
