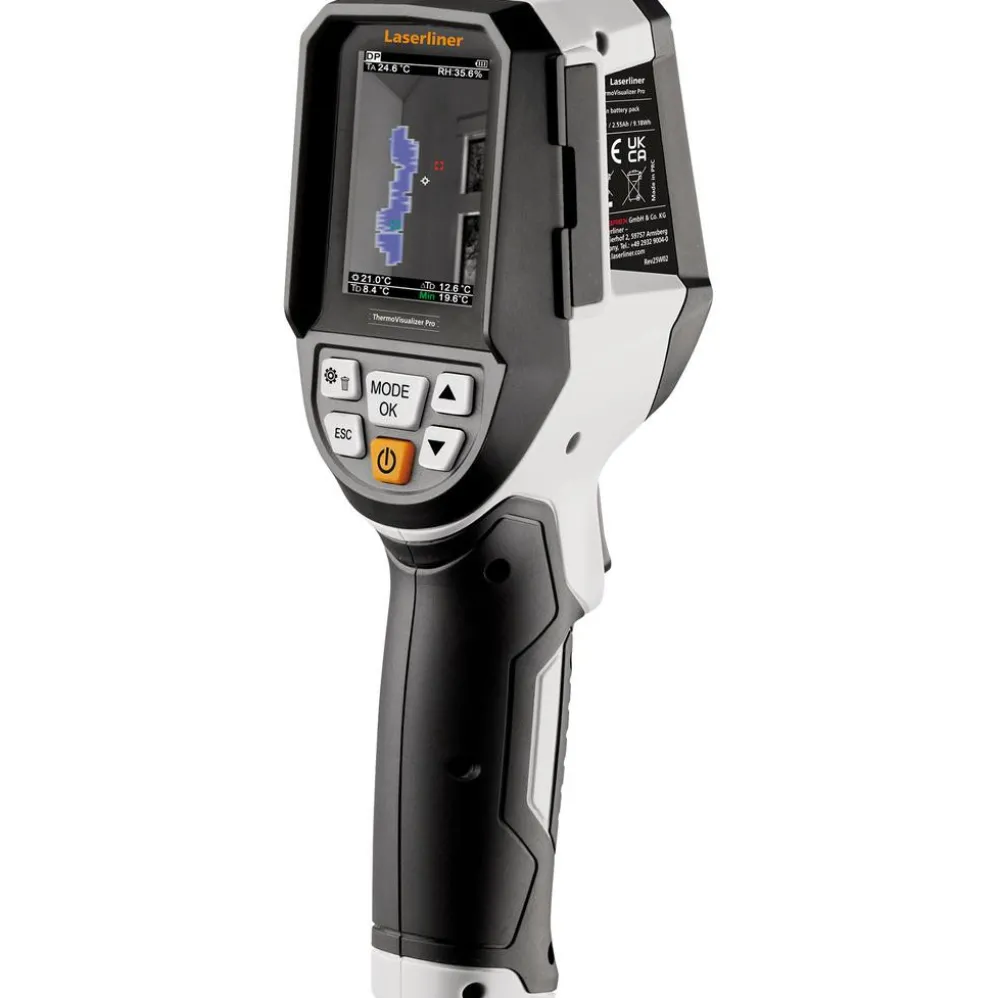

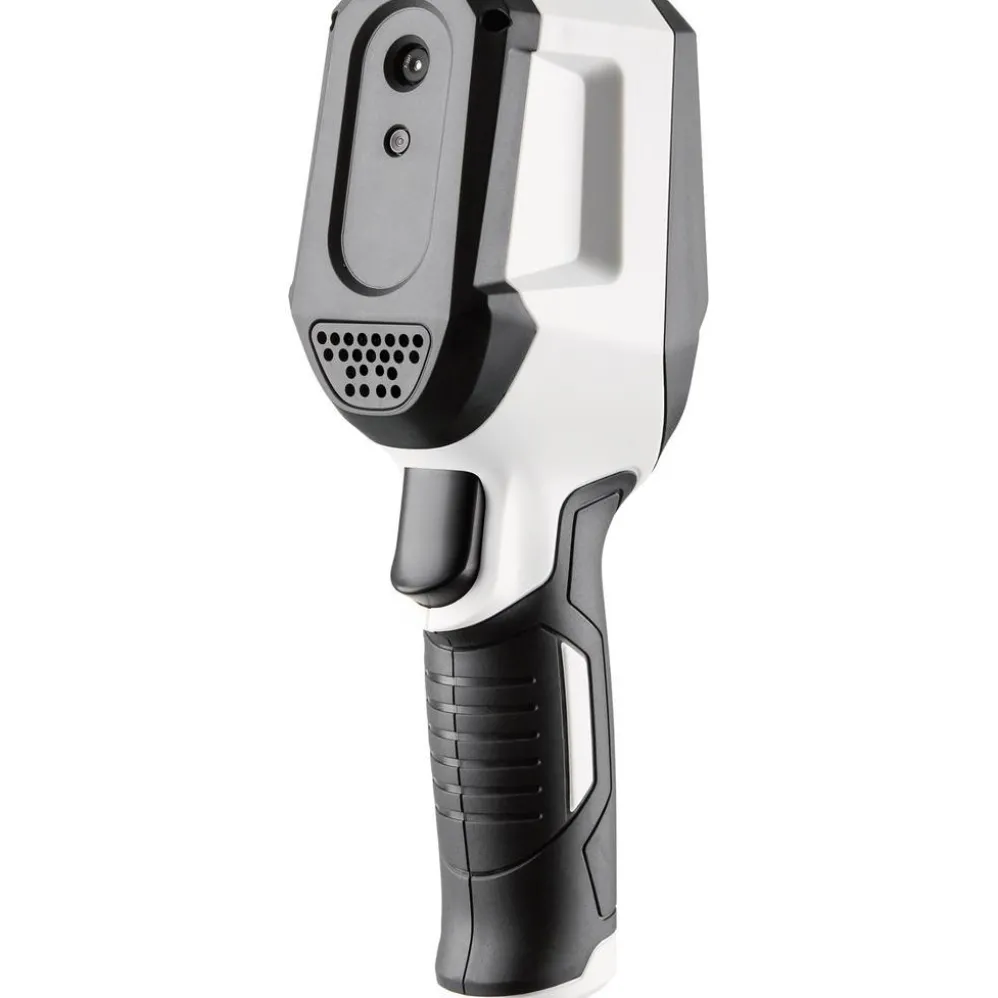

Laserliner 082.078A ThermoVisualizer Pro Thermal Imaging Camera

Laserliner 082.078A ThermoVisualizer Pro Thermal Imaging Camera

£96.86

SKU: SKU7CHVTE Categories: Electrical, Equipment, Testing Equipment Tag: Laserliner Brand: Laserliner

Description
Reviews (0)

Product Description

This innovative thermal camera determines surface temperatures, relative humidity, ambient temperature and dew point temperature. It reliably visualises temperature curves, thermal bridges and condensation. A fusion from the thermal camera, digital camera and hydrometer forms the visual dew point function. It generates reliable thermal images with precise marking of surfaces that have reached or fallen below the dew point, ideal for critical interior space inspections. In addition to building inspections, the many possible uses include working on electrical systems, machines, heating and ventilation systems as well as locating heat sources or cold spots. Supplied with battery pack, USB-C-cable and softbag.

Reliable visualisation of temperature curves, energy loss, thermal bridges and electrical and mechanical overloads

Determining surface temperatures, relative humidity, ambient temperature and dew point temperature

Flexible display with infrared image, digital image and mix image

Visual dew point function for precise marking of surfaces that have reached or fallen below the dew point

Perfect for critical interior space inspections, for example to detect condensation and with a clear thermal bridge warning

Versatile: Building inspections, electrical systems, machines, heating and ventilation engineering, locating heat sources and cold spots

Device fits well in the hand due to compact ergonomic design

Suitable for fitting on tripods with a 1/4” thread

IP 54: dust and splash proofing

Supplied with battery pack, USB-C-cable and softbag

1 x Laserliner 082.078A ThermoVisualizer Pro Thermal Imaging Camera
1 x Micro SD card
1 x Integrated Li-ion battery pack
1 x USB-C-cable
1 x Softbag

Specifications

Min/Max	Yes
Dew point temperature	Yes
Image recording	Yes
Data transfer	Yes
Digital camera	Yes
Time stamp	Yes
Adjustable emissions level	Yes
Humidity	Yes
MIX image	Yes
Ambient temperature	Yes
Thermal image	Yes
Thermal bridge warning	Yes
Mains operation	Yes
Screen Type	2,4″ Colour TFT
Sensor Type	uncooled microbolometer
Display ResolutionDisplay Resolution	320 x 240 pixels
Image Frequency	9 Hz
Thermal Sensitivity (NETD)	60 mK @25°C
Measuring Range Infrared Temperature	-20°C … 150°C, 0°C … 400°C
Power Supply	Li-ion battery pack 3.6V / 2.55Ah / 9.18Wh
Operating Time	approx. 4 hours
