Product Description

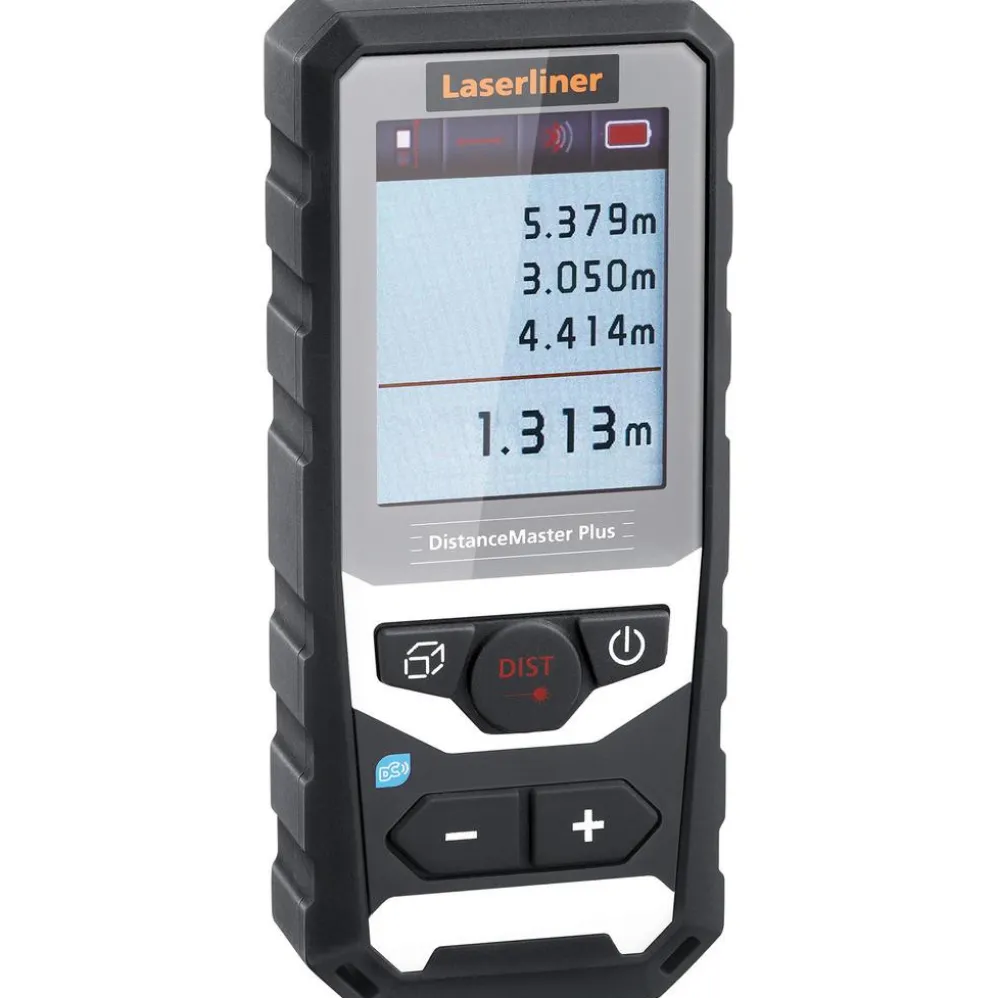

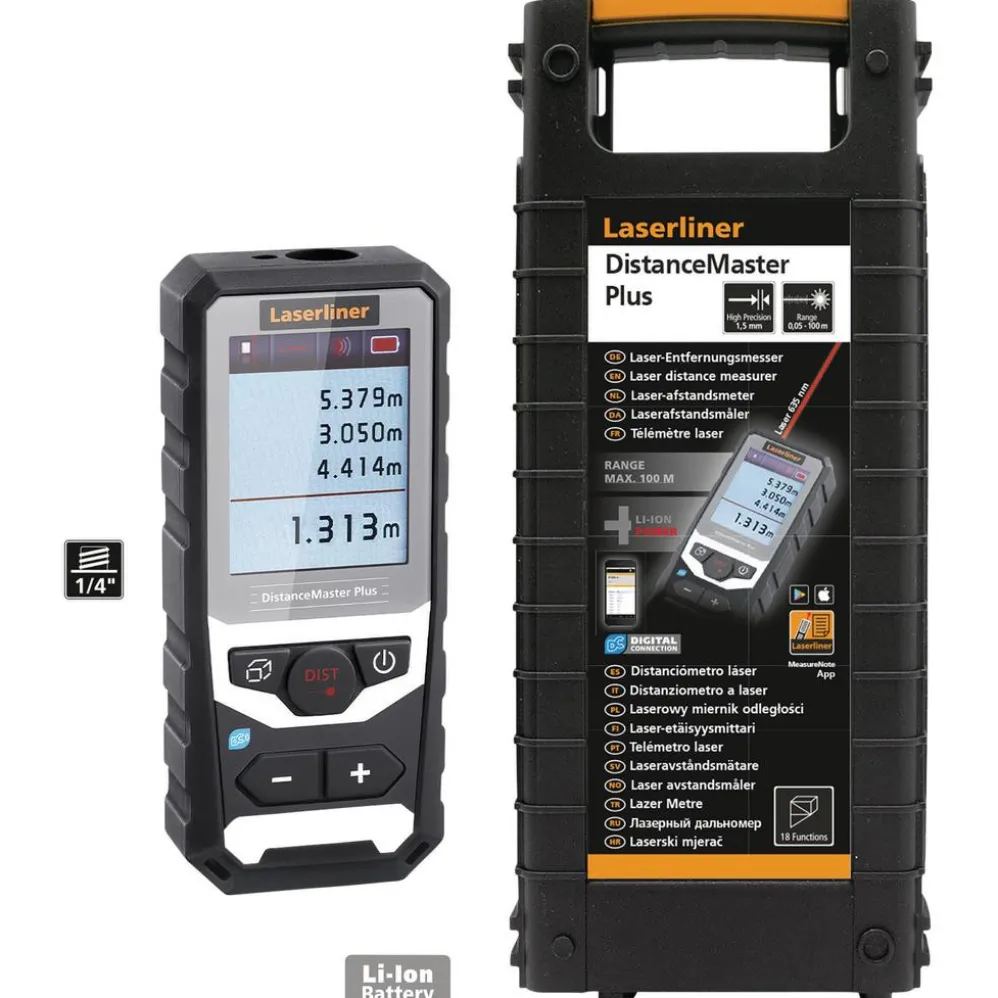

This universal laser rangefinder has a long measuring range of 100 metres and is perfect for rapid measurement, addition and subtraction of lengths, areas and volumes. The angle function allows heights and distances to be determined indirectly – perfect for measuring inaccessible locations. The continuous measuring function makes it easier to work in situations where continuous range-finding measurements are required, such as when the target object moves during measurement. The digital spirit level allows the rangefinder to be precisely aligned horizontally and perfectly set up for the measurement. Measured data can be transferred to the measured value log using the digital connection interface. It can store a maximum of 50 entries for optimum recording of results from the project. Supplied with Li-ion battery pack and hardcase.
1 x Li-ion battery pack
1 x Hardcase
| Length/area/volume | Yes |
| Min/Max | Yes |
| Indirect determination of height (Pythagoras) | Yes |
| Selectable housing reference point | Yes |
| Addition/subtraction | Yes |
| Data transfer | Yes |
| Addition of wall area (decorators’ function) | Yes |
| Continuous measurement | Yes |
| Precision (Typical)* | ± 1.5 mm |
| Measurement Range (Inside)** | 0,05 m – 100 m |
| Laser Wavelength | 635 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Memory | 50 storage locations |
| Power Supply | Li-ion battery pack 3.7V / 0.7Ah |
| Operating Conditions | -10°C … 40°C |
| Dimensions (W x H x D) | 54 mm x 126 mm x 27 mm |
| Weight | 142g (incl. Battery Pack) |
