Product Description

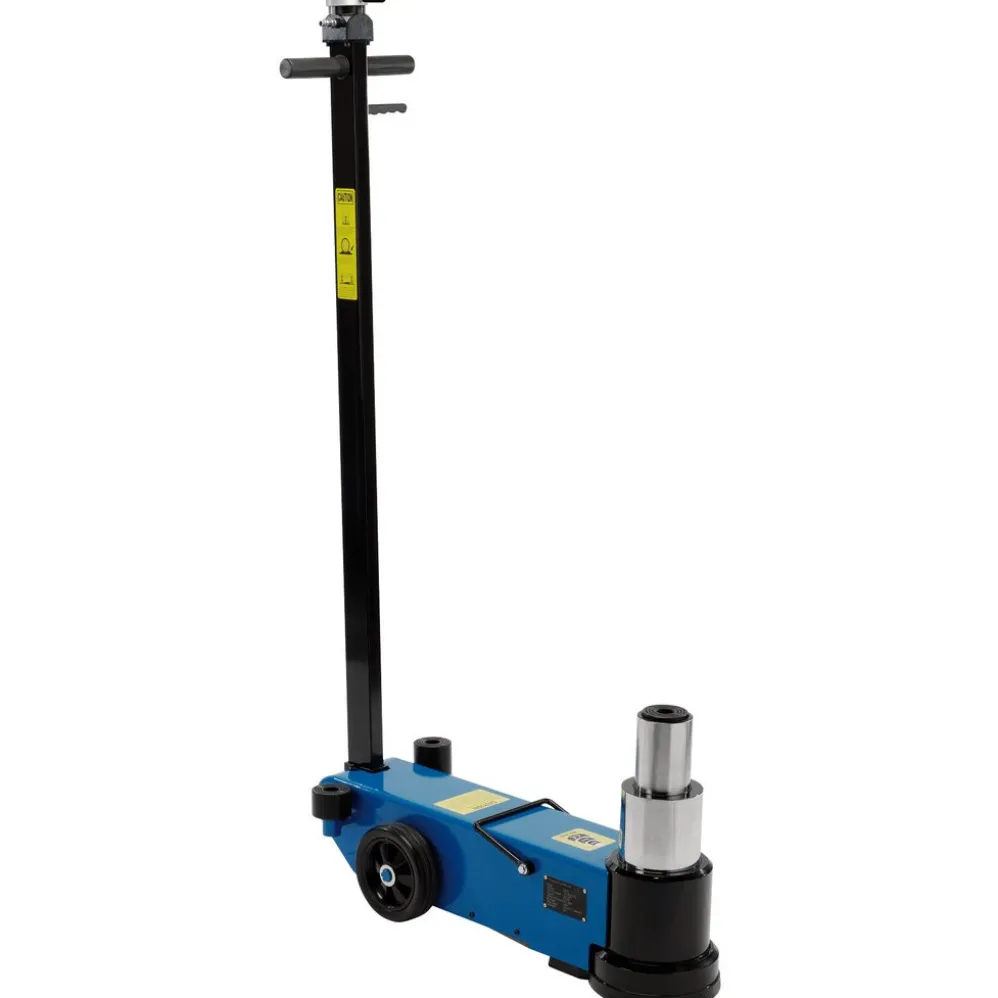

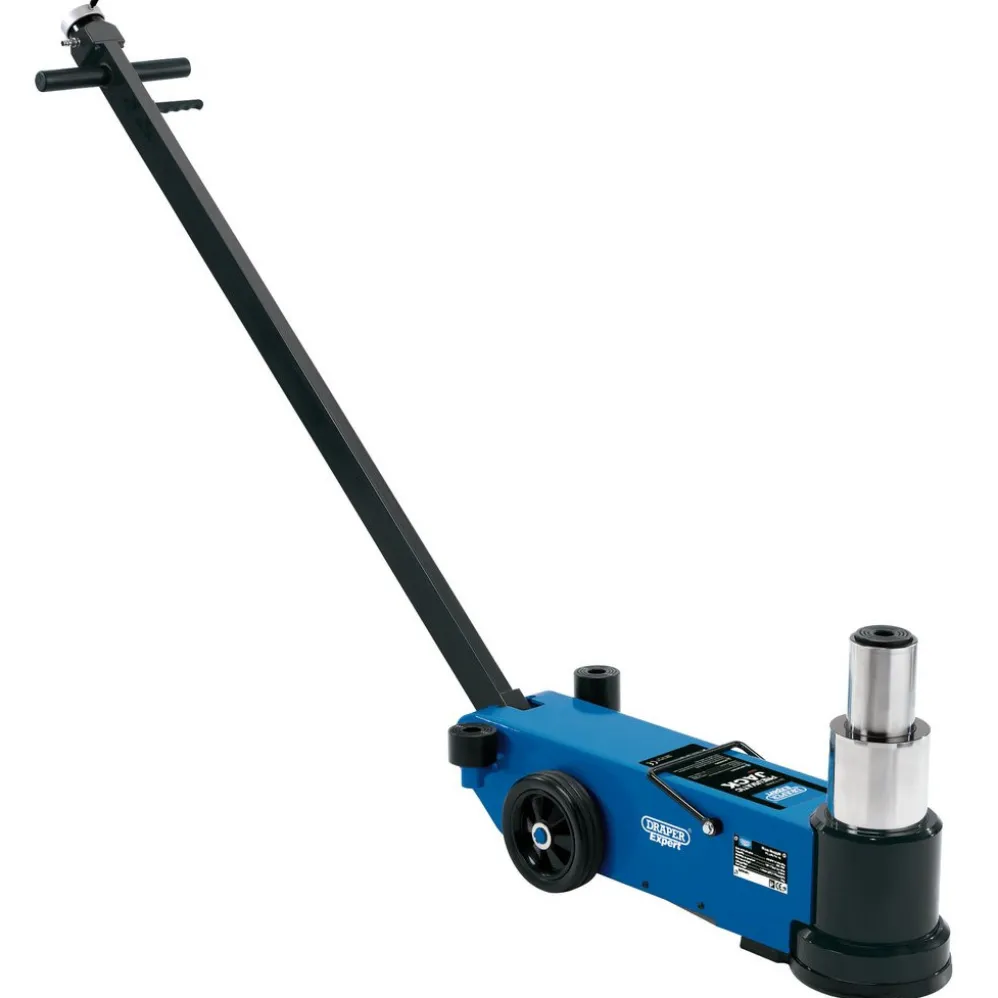

Portable and compact twin stage pneumatic jack, capable of lifting 50 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a “Slow Down” valve and a “Self-Return” switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4″ BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Manufactured to EN1494 Specification
| Air Consumption | 11.5cfm |
| Air Inlet | 1/4″ BSP |
| Capacity | 50 Tonne (50,000kg)25 Tonne (25,000kg) |
| Chassis Dimensions | 805 x 200 x 215mm |
| Handle Length | 1380mm |
| Lifting Height Position 1 | 115mm |
| Lifting Height Position 2 | 114mm |
| Max Height Stage 1 | 450mm (inc extensions) |
| Max Height Stage 2 | 564mm (inc extensions) |
| Min Height | 215mm |
| Nett Weight | 73kg |
| Operating Air Pressure | 9 – 12BAR (130 – 174psi) |
| Saddle Diameter | 70mm |
| Wheel Diameter | 165mm |
| Wheel Width | 42.5mm |
