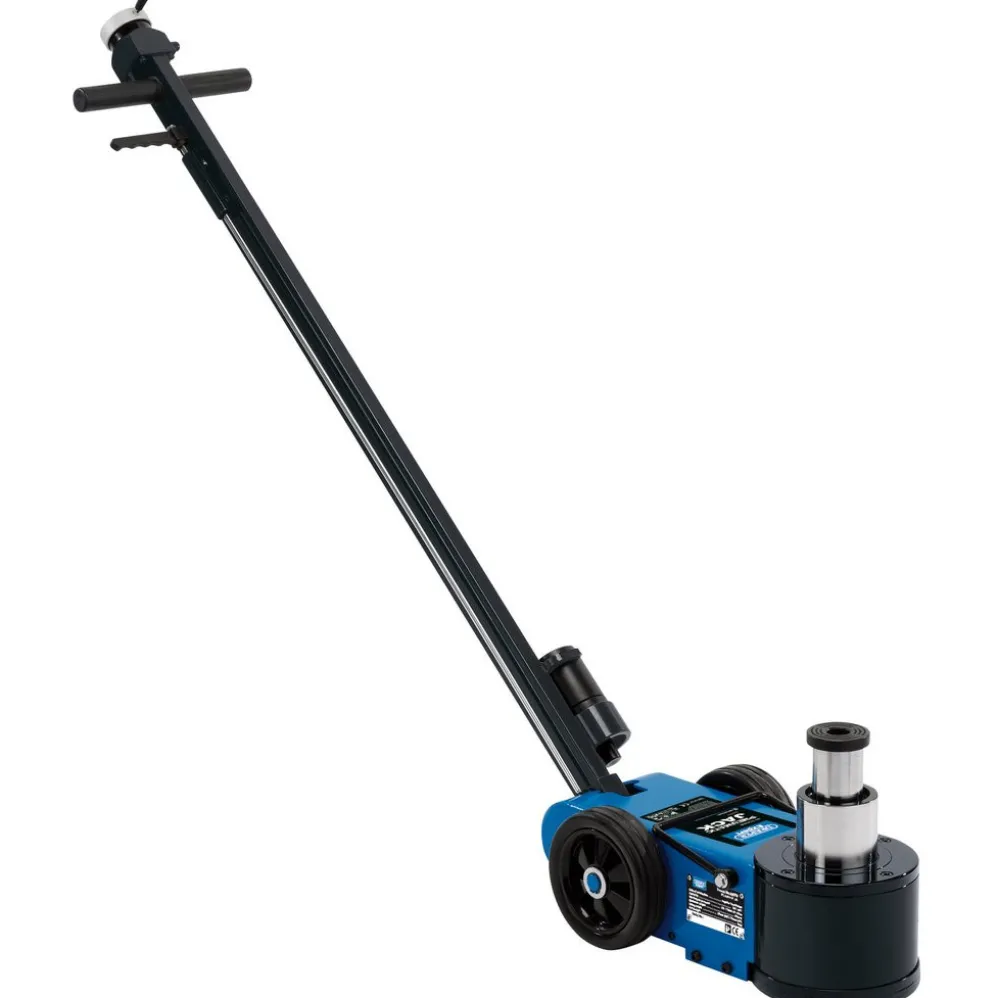

Draper Expert Pneumatic Jack, 40 Tonne

£96.86

SKU: SKUCPUT05 Categories: Automotive Tools, Jacks, Lifting Equipment Tag: Draper Expert Brand: Draper Expert

Description
Reviews (0)

Product Description

Portable and compact twin stage pneumatic jack, capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a “Slow Down” valve and a “Self-Return” switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4″ BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

Compact twin stage pneumatic jack

Ergonomic handle grips

Slow Down’ valve

Self-Return’ switch

Twin PP and rubber wheels

Industrial seals

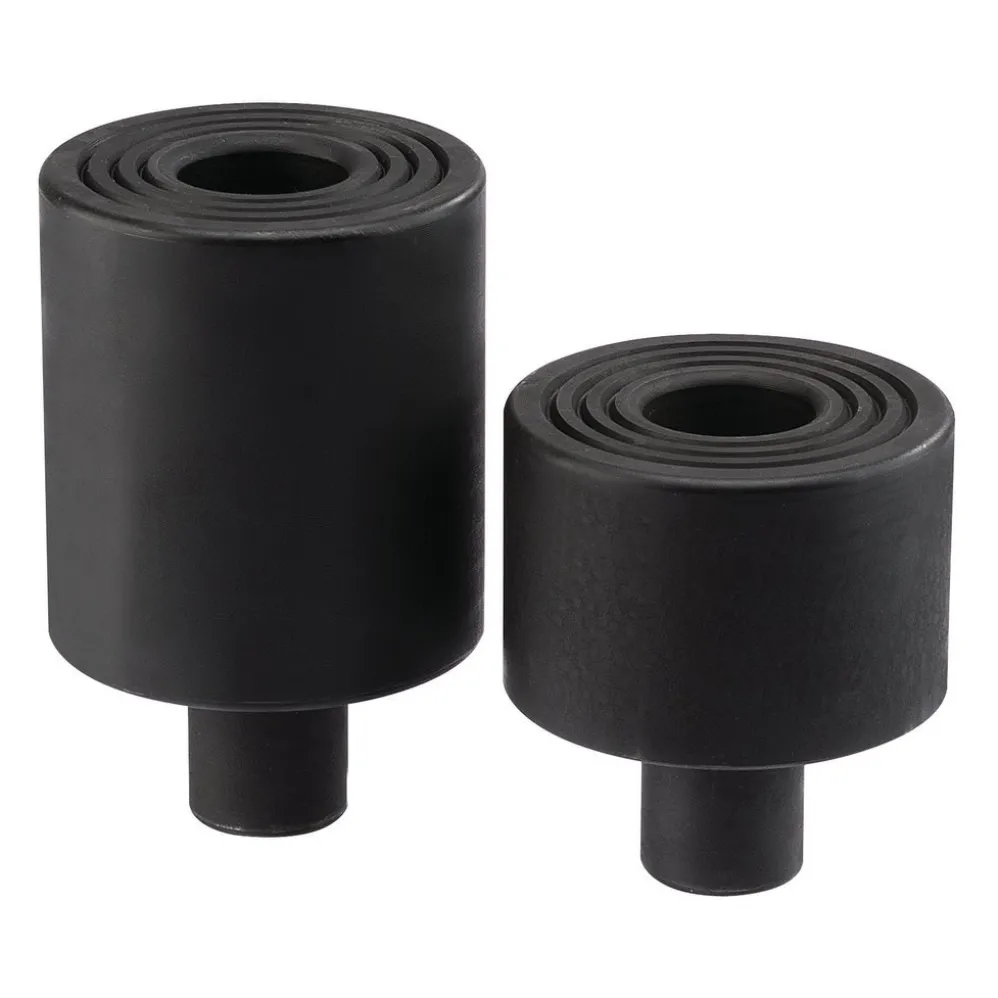

Supplied with 1/4” BSP inlet and 45mm/75mm extensions

Manufactured, tested and certified to the current EN1494 standard

Manufactured to EN1494 Specification

1 x Pneumatic Jack, 40 Tonne

Specifications

Air Consumption	11.5cfm
Air Inlet	1/4″ BSP
Capacity	40 Tonne (40,000kg)20 Tonne (20,000kg)
Chassis Dimensions	480 x 186 x 150mm
Handle Length	1300mm
Lifting Height Position 1	73mm
Lifting Height Position 2	66mm
Max Height Stage 1	343mm (inc extensions)
Max Height Stage 2	409mm (inc extensions)
Min Height	150mm
Nett Weight	40kg
Operating Air Pressure	9 – 12BAR (130 – 174psi)
Saddle Diameter	70mm
Wheel Diameter	165mm)
Wheel Width	42.5mm
