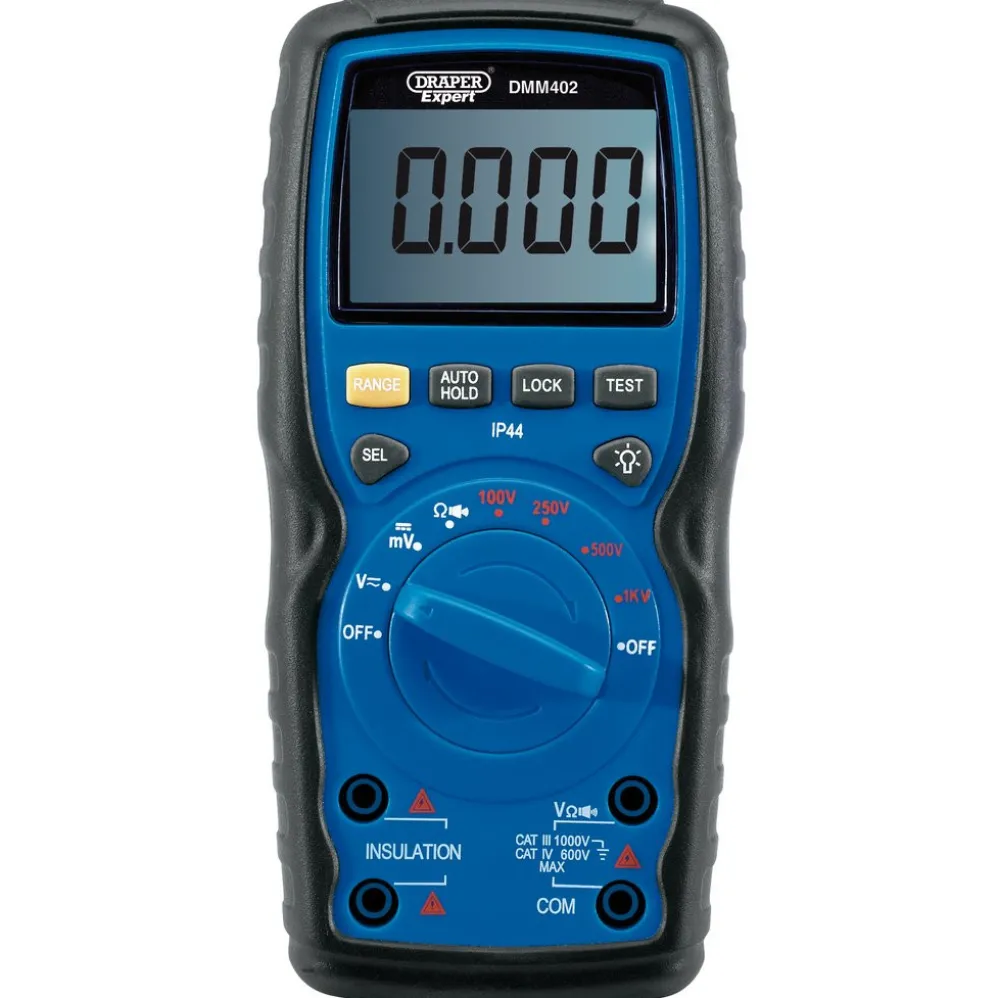

Draper Expert Insulation Resistance Meter

£89.53

SKU: SKUNUUZSK Categories: Electrical, Equipment, Testing Equipment Tag: Draper Expert Brand: Draper Expert

Description
Reviews (0)

Product Description

Auto ranging with analogue bar – graph scale. Capable of DC voltage, AC voltage, resistance and continuity testing. Fitted with backlit LCD screen, continuity buzzer, data hold features. Supplied with a carry case.

Auto ranging with analogue bar-graph scale

Capable of DC voltage, AC voltage, resistance and continuity testing

Fitted with backlit LCD screen, continuity buzzer, data hold features

Supplied with a carry case

1 x Draper Expert Insulation Resistance Meter

Specifications

AC Current	N/A
AC Voltage	400mV/4V/40V/400V/1000V
Automatic Power Off	Yes
Battery	6 x AAA (not supplied)
Capacitance	N/A
DC Current	N/A
DC Voltage	400mV/4V/40V/400V/1000V
Diode on/off Test	Yes
Dimensions	218mm x 200mm x 74mm
Duty Ratio	N/A
Dwell	N/A
Frequency	N/A
Insulation Test	100V, 250V, 500V, 1000V
Resistance (Ohms)	400Ω/4.000kΩ/40.00kΩ
Symbol Unit Data Hold	Yes
TACH	N/A
Temperature Range	N/A
Weight	774g (approx.)
