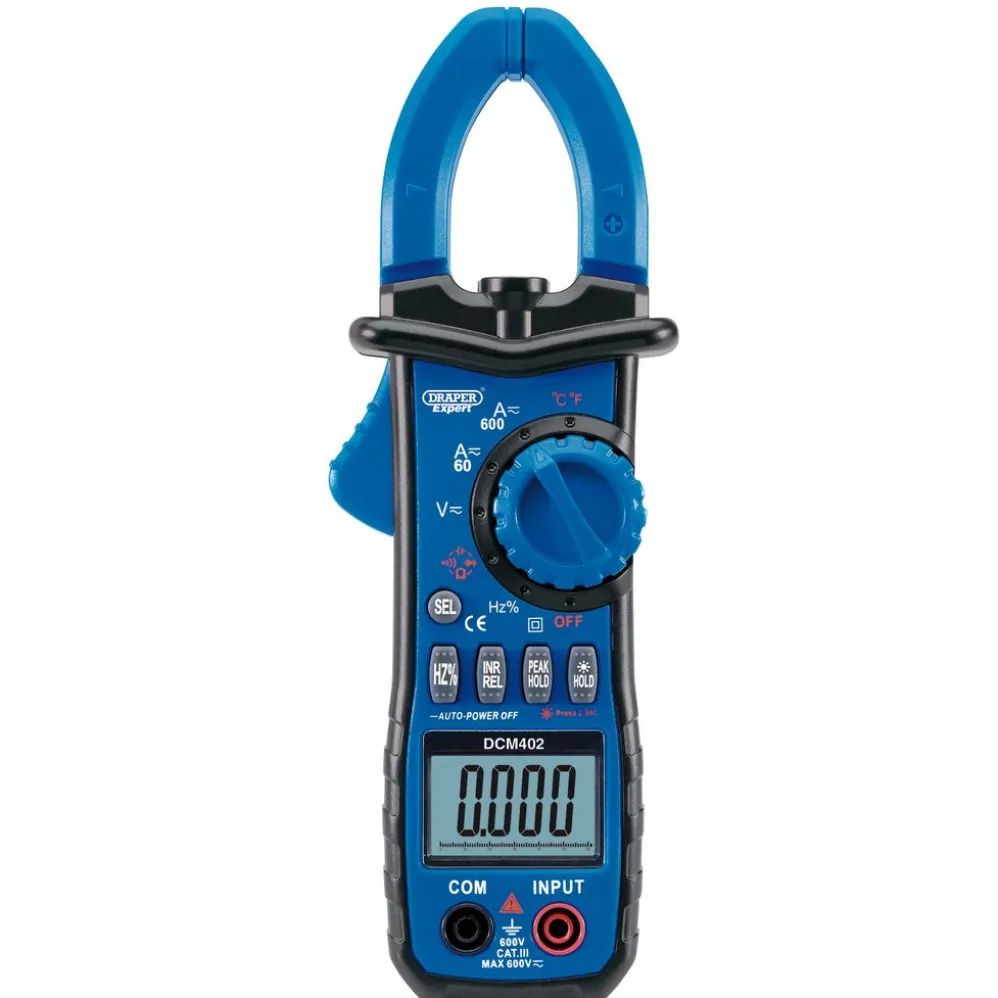

Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function

Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function

£76.14

SKU: SKU5V495B Categories: Electrical, Equipment, Testing Equipment Tag: Draper Expert Brand: Draper Expert

Description
Reviews (0)

Product Description

Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw – opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe and a case.

Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and

Temperature testing

Maximum jaw-opening diameter of 36mm

Backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light

Supplied with test leads, temp probe and a case

1 x Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function

Specifications

AC Amps	60A/600A
AC Current	60A/600A
AC Voltage	6V/60V/600V
Automatic Power Off	Yes
Battery	3 x AAA (not supplied)
Capacitance	999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
DC Amps	60A/600A
DC Current	60A/600A
DC Voltage	600mV/6V/60V/600V
Diode on/off Test	Yes
Dimensions	228mm x 158mm x 58mm
Duty Ratio	Yes
Dwell	N/A
Frequency	100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms)	6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold	N/A
TACH	N/A
Temperature	-50 to 300ºC
Temperature Range	-50°C – 1000°C/-58°F – 1832°F
Weight	400g (approx.)
