Product Description

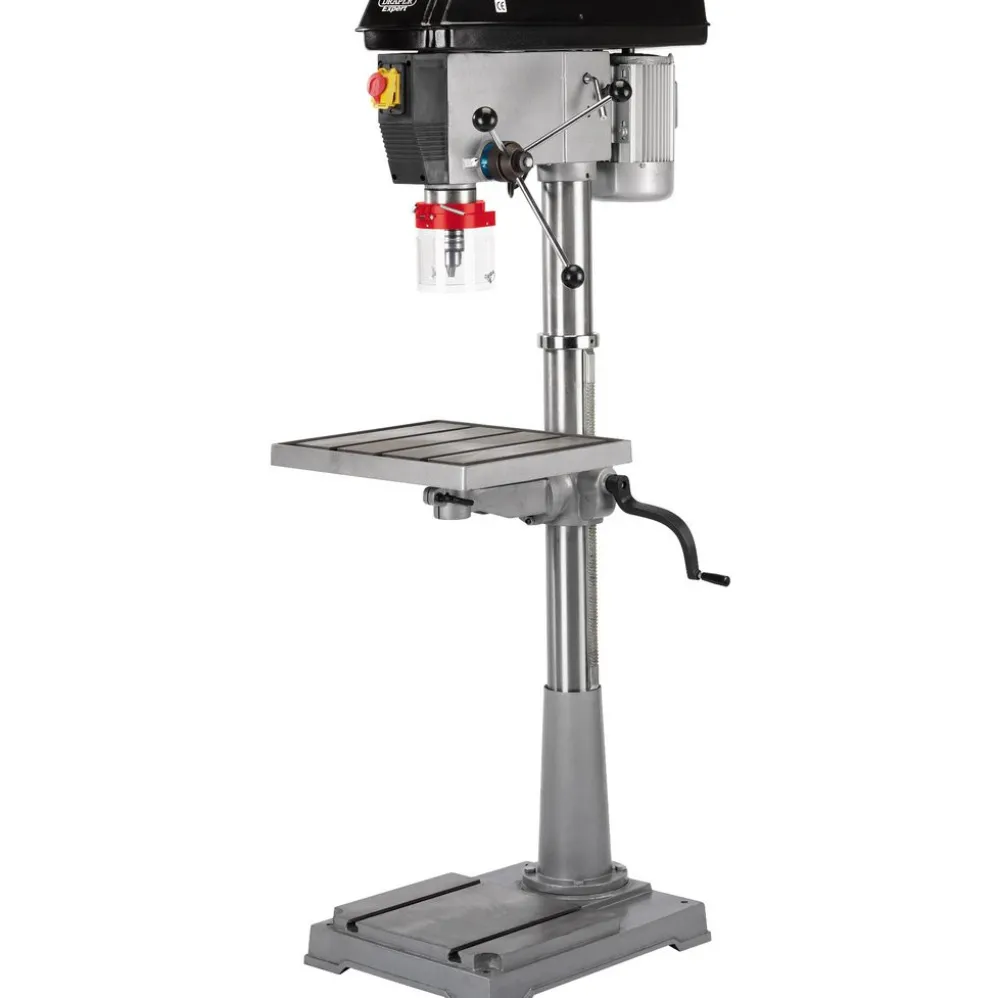

Heavy duty 12 speed floor standing drill with a 32mm drilling capacity. Designed for engineering and fabrication workshops. The square table is fitted with a heavy duty smoothly operated rack and pinion for easy adjustment. Fitted with a No-Volt safety release switch, depth stop and chuck guard. Manufactured with an aluminium motor casing and lockable pulley cover. Supplied with a BS approved non-rewireable moulded plug and 2.0m (approx.) cable.
No-volt switch
| Height | 1,710mm |
| Speed | 12 (150-2,700rpm) |
| Weight | 148kg |
| Base size | 580 x 450mm |
| Chuck capacity | 3-16mm |
| Collar diameter | 92mm |
| Column diameter | 92mm |
| Drilling capacity | 32mm |
| Spindle taper | MT4 |
| Spindle travel | 120mm |
| Table size | 475 x 425mm |
| Throat depth | 255mm |
